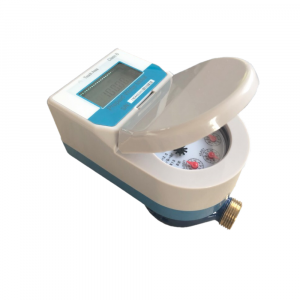

集成式键盘预付费水表
This meters is an STS Standard compliant,keypad type, automatically valve controlled Multi-jet prepaid water meter.It can be top up with vending software directly and communicate with AMI system to recharge remotely via LORA-RF module.
自验收之日起一 (1) 年内，所有仪表均保证无工艺和材料缺陷。
Compliance with Standard
✽ ISO 9001 ; ISO 14001
✽ STS Certificated
申请：
Measuring the volume of cold water through water pipe.
特点
✽ Maximum working pressure: 16 Bar
✽ Maximum pressure loss: 0.6 Bar
✽ Maximum reading: 99999
✽ Working temperature: <50℃
✽ Error: Q1≤Q≤Q2 5%;
Q2≤Q＜Q4 2%
Functions:
The integrated keypad of water meter is
offered to enter recharge TOKEN and check
information by short codes.
Vending software could be integrated to
local Mobile Money Payment Platform like
M-PESA, Alipay, MTN, Airtel, etc.
Basic Function:
✽ Meter Recharge: By inputting 20 digits Token.
✽ Low Credit Alarm: Alarm value can be set
by inputting corresponding TOKEN.
✽ Non-return valve: Non-return valve inside
for preventing back-flow.
Communication:
The meter is available with AMI system through
LORA-RF or Bluetooth 4.0 on request.
Anti-Tamper Functions:
Meter will automatically close the valve after detection of magnetic field and open cover event.
Step Tariff:
Meters can be set Step Tariff by inputting corresponding TOKEN. Utilities can set step price on request.
Overdraft Collection:
Non-Revenue water (Overdraft) can be collected day by day or month by month.
Information Inquiry:
Consumer could check the data like Credit Remain, Total Purchased and Total Credit by input the short code.
Metrological Parameters of different size
Meter Dimension
Liquid Crystal Display:
Three solutions to recharge water meter
1. By vending Software
→Via local sales point or handheld mobile vending unit
Operation of vending software
1. Login vending system
2. Meter number registration
3. Customer information registration
4. Price Setting
5. Open Account
6. Vending/Topping up meters
7. Get the Token
8. Input Token to meter with keypad
9. Recharging successfully
2. By the third party platform or local mobile payment with API
→Via mobile pho
API: Application Program Interface, which is the agreement connecting the third party APP and our vending software.
The advantages to recharge with mobile payment:
✽ Users can top up water by mobile money without leaving the house.
✽ Users could check information by their telephone.
✽ It helps utilities for Revenue water protection and consumer management.
3. By the AMI System
→Recharge remotely via DCU and LORA-RF module
