Small water meter parts(body connector cover)
We have brass, iron and plastic water meter, and full range water meter parts. Meter types include multi-jet water meter, single-jet water meter, dry type and wet type meters etc. Water meter parts include water meter body, water meter cover, water meter flange, water meter fitting, lead free meter fitting etc. Best quality and competitve price. Material: Brass,plastic and stainless steel. Multi-jet: 15-50mm, dry and wet type, inside adjustment, outside adjustment, remote-reading water meter. Single-jet: 13mm, 20mm. Remote-reading water meter. Plastic meter: Inside adjustment and outside adjustment.
All meters will be guaranteed against defects in workmanship and materials for a period of one (1) year from the date of acceptance.Defective meters or parts discovered within this period shall be replaced without charge upon return to the HBM Meters.
Our main products are Medium and High grade water meter for Export, include hot & cold water meter, small and large caliber removable water meter (Woltman type, irrigation & sewage type ) and smart water meter series，and water meter parts.

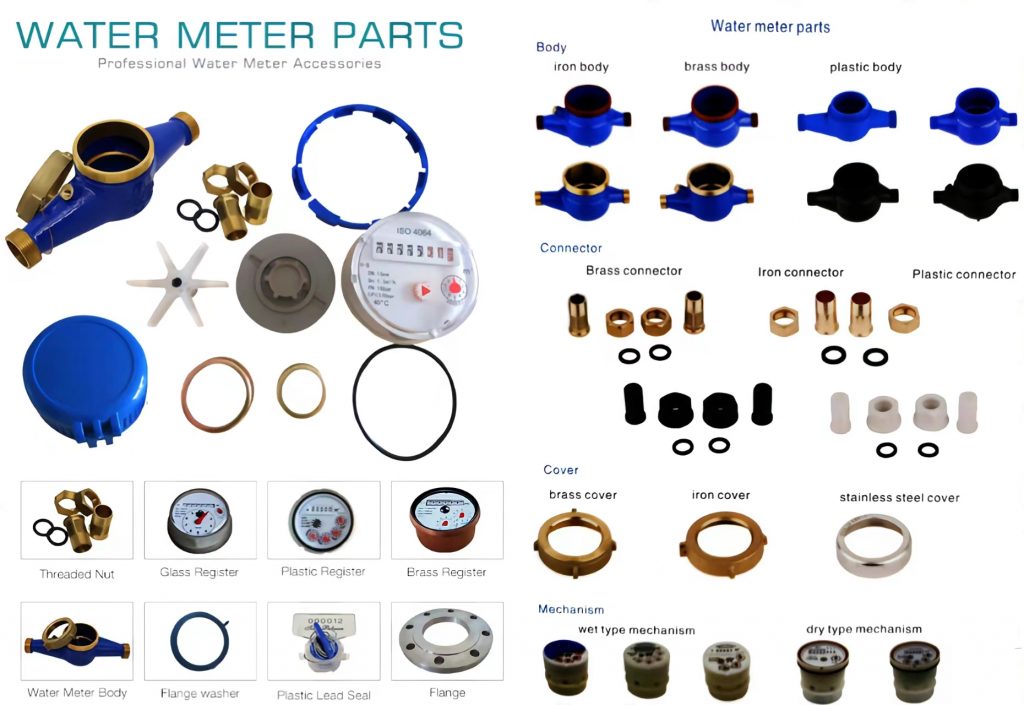

Description of water meter body parts components
Meter cover: 15-600mm
Meter coupling: 15, 20, 25, 32, 40, 50mm (For multi jet & single jet & volumetric)
Meter flange: 50mm-600mm
lead free meter fitting: 15mm-50mm
Technics: Forging, Casting. ductile
Material: Brass, Plastic, cast iron, ductile iron
BSPT or NPT thread.
Meter mechanism: 15mm-600mm
Meter box
We produce all parts for multi-jet water meter, single-jet water meter, volumetric water meter, woltman water meter, prepaid water meter etc.

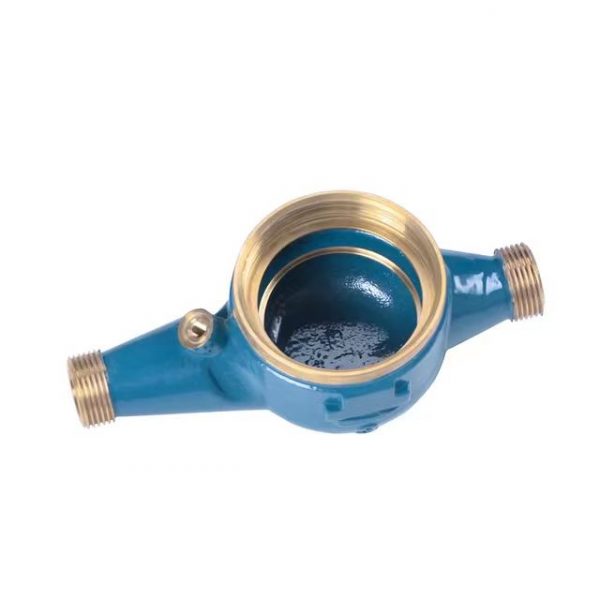

Water meter body
Description
1. Product name: Brass Water Meter Body / Brass Body of Water Meter / Brass Water Meter Body.
2. Material: Brass (Cu≥58% Zn≤39% Pb≤3%) / cast iron/plastic
3. Manufacturing technique: Gravity casting / Sand casting.
4. Analytical equipment: Direct-reading spectrometer.
5. Standard: According to customer’s drawings (OEM and design).
6. Size: 15-50mm for multi jet, 15-25mm for the single jet.
| DN | mm | 15 | 20 | 20 | 20 | 25 | 25 |
| inch | 1/2″ | 3/4″ | 3/4″ | 3/4″ | 1″ | 1″ | |
| L2 (without connect coupling) | mm | 165/170 | 190 | 190 | 220 | 175 | 175/260 |
| L1 (with connect coupling) | mm | 245/250 | 286 | 286 | 316 | 293 | 293/378 |
| D1 | inch | 3/4″ | 1″ | 1″ | 1″ | 1 1/4″ | 1 1/4″ |
| D2 | inch | 1/2″ | 3/4″ | 3/4″ | 3/4″ | 1″ | 1″ |
| B | mm | 95 | 95 | 95 | 95 | 95 | 95 |
| H1 kx | mm | 120 | 120 | 120 | 120 | 120 | 120 |
| H1 mx | mm | 125 | 125 | 125 | 125 | 125 | 125 |
| H2 | mm | ~35 | ~25 | ~25 | ~35 | ~35 | ~35 |
| H3 | mm | 15 | 15 | 15 | 15 | 15 | 15 |
Product Description Of Mechanical Multi-Flow Water Meter Connecting Pipe Nuts
Mechanism for Dry type multi jet water meters from DN15-50
Class B or R80,R100,R125,R160
Multi-jet Dry Type Vane Wheel Water Meter
It is a multi-jet super dry water meter for residential
application in sizes 15mm-20mm for cold and hot meter.
Features
Compact design with smaller meter body.
Brass body is only 570g weight for save cost
45° inclined register, hot wire tamper proof.
Magnetic drive mechanism with anti-magnetic protection.
External regulation device
Optional Features
Several lengths and connections available on request
Non return Valve
Reed switch option
Working Conditions
Water temperature: ≤50ºC for cold water meter, ≤90ºC for hot water meter
Water pressure: ≤1MPa or 1.6MPa optional (10bar or 16bar option)
Accessories
Each meter has one set coupling optional: 2pcs coupling, 2pcs coupling nuts and 2pcs washers.
Installation Requirements
The meter should be installed in horizontal position with the direction of the flow as
indicated by the arrow cast in the meter body with the register face upwards.
Pipeline must be flushed before installation.
The meter should be constantly full of water during operation.
Maximum Permissible Error
In the lower zone from Qmin inclusive up to but excluding Qt is ±5%.
In the upper zone from Qt inclusive up to and including Qs is: cold water meter ±2%.
Water Meter Dial Parameters：
Type: 8 rollers dial /5 rollers dial
Size: DN15-DN600
Material: Primary plastic
Brand: OEM
Application: Water meter
Supply Ability: 100000 Piece/Pieces per Month water meter mechanism
Packaging Details: Export Class Carton/ wooden case/box
Multi-jet Vane Wheel Water Meter
| Size | 15mm – 50mm (1/2 inch ~ 2 inch) |
| Material | Brass & Plastic & Iron |
| Type | Dry-dial, Semi-dry, Wet-dial |
| Standard | Class B, Class C |
| Connection | Screw / Thread end |
Removable Element Woltman Water Meter
| Size | 40mm – 600mm (1-1/2 inch ~ 24 inch) |
| Material | Cast Iron & Ductile Iron & Stainless Steel |
| Connection | Flange end |
| Standard | Class A (irrigation type), Class B (industry type), Class C (Vertical Helix) |
| Applications | Industrial & Agriculture |
Rotary Piston Liquid Sealed Class C Water Meter
| Size | 15mm – 40mm (1/2 inch ~ 1-1/2 inch) (Plastic 15mm~20mm) |
| Material | Brass & Plastic |
| Connection | Screw / Thread end |
Single-jet Vane Wheel Water Meter
| Size | 15mm – 25mm (1/2 inch ~ 3/4 inch) |
| Material | Brass & Plastic |
| Connection | Screw / Thread end |
Prepaid Water Meter
| Size | 15mm -300mm (1/2 inch ~ 12 inch) |
| Material | Brass & Plastic |
| Connection | Screw / Thread end |
Application: Measuring the volume of potable cold water passing through the pipeline
Features: Register sealed in a vacuum, anti-condensation atomization proof, enables clear reading; detachable, easy maintenance
Standards: ISO4064 class B
Packaging and Transport:LXSG type – Multijet LXDG type – Single jet
Each meter is packed in a small box. Outer packing is a carton.
LXLC type – Industrial flange LXXG type – Agistrar Irrigation & Sewage water
Each meter is packed in a carton / wooden box.
