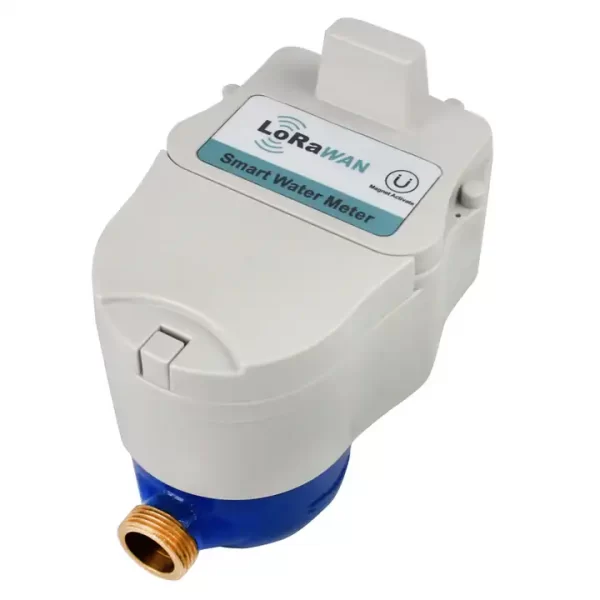

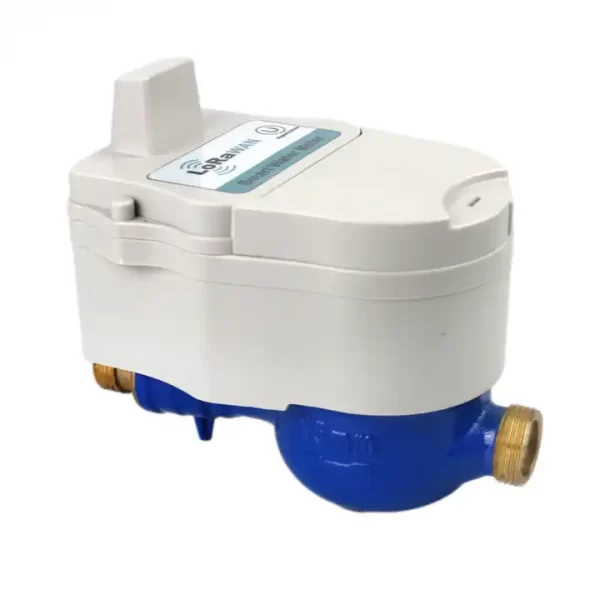

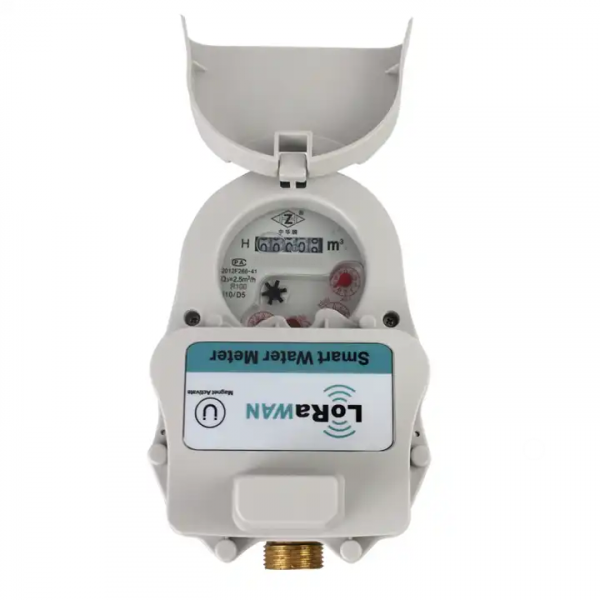

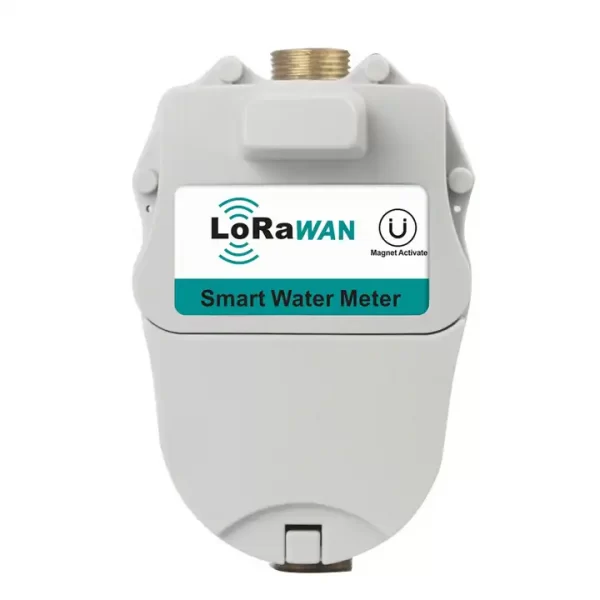

Lorawan smart water meter

Lorawan smart water meter

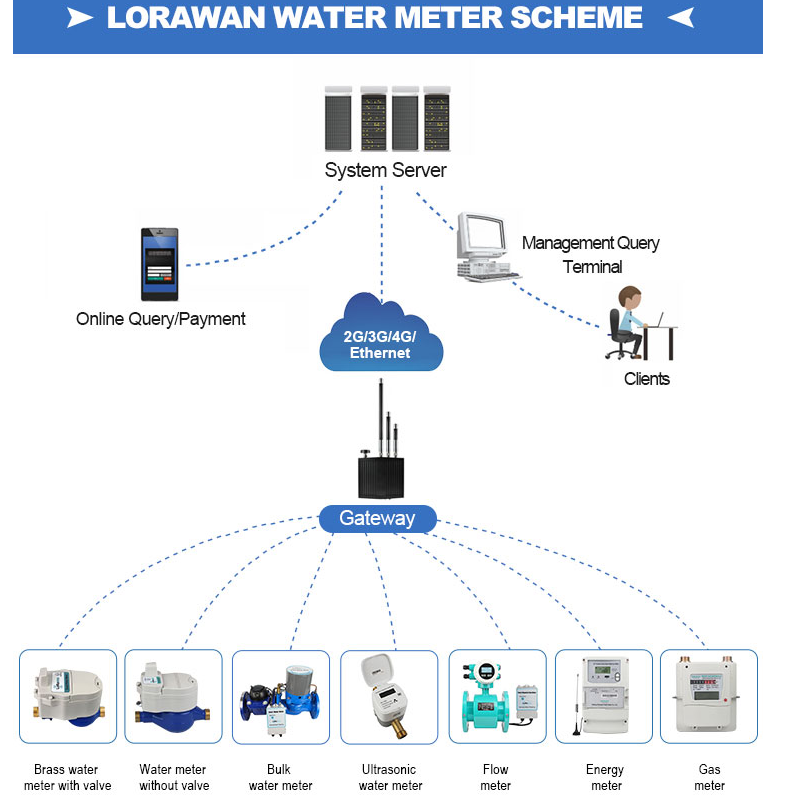

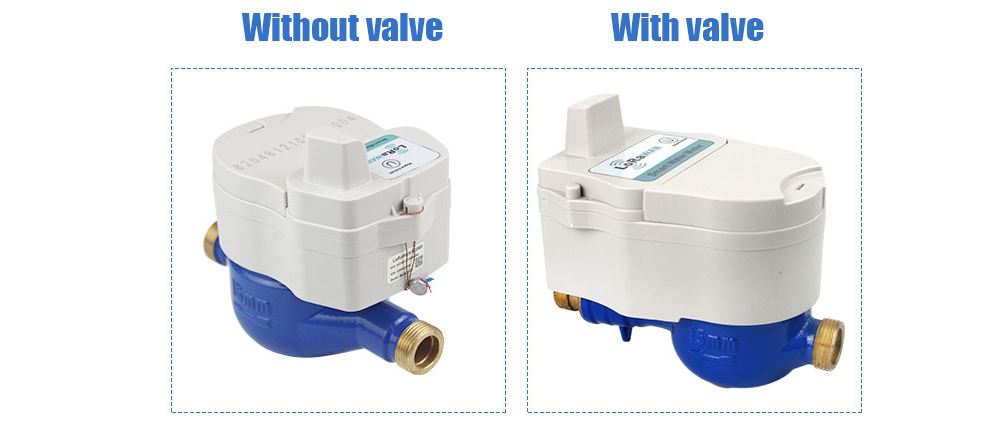

Wireless remote water meter is based on the wired remote water meter, added the wireless module, the water meter has a routing function, construction and installation is simple, convenient, the network process automatically completed, solved the complex wiring construction problems. Wireless valve remote control water meter is based on the wireless remote meter, added the valve control function, solved the problems that user maliciously arrears of water charges, charges difficult, achieved a remote real-time monitoring and remote switching valves and prepaid functions.

All meters will be guaranteed against defects in workmanship and materials for a period of one (1) year from the date of acceptance.Defective meters or parts discovered within this period shall be replaced without charge upon return to the HBM Meters.

    RF parameters:

    • LoRaTM Modem;
    • Support FSK/GFSK/MSK/GMSK/LoRa/OOK etc.
    • Operating Frequency: 863 to 870MHz, metering dedicated frequency band, no license required;
    • Dual-channel and dual-speed switch automatically (frequency hopping), resist co-channel interference;
    • Effective radiation power up to 90mW (19.5dbm);
    • The power level can be adjustable
    • Support multiple baud rates and multiple RF rates;
    • High receiver sensitivity down at-140dBm;
    • Ultra-long communication distance, the line of sight communication distance is 7 km for rural environment and 5 km in urban area;
    • Fully compatible with LoRaWAN standards and devices come from other companies;
    • Support ADR, higher rate, lower power, which is flexible to build up.

    Power consumption:

    • Working voltage 2.3 ~ 3.7V;
    • Quiescent current ≤13uA, Average power consumption ≤20uA;
    • The battery life of single ER18505M @ 3600mAh can last up to 10 years.

    Electrical Characteristics:

    Working conditions:

    Parameter Min. Type Max. Units
    Operating Voltage 2.3 3.6 3.7 V
    Power on time 100 ms
    Working temperature range -20 25 75
    Operating humidity range 10 90 %rh
    Voltage -0.5 3.8 V
    I/O Level -0.3 VDD+0.3 V
    storage temperature -40 125



    • Straight pipe length fore water meter is 10 times of DN, straight pipe length behind water meter is 5 times of DN.
    • Flow direction should be the same as the arrow on the body directs.

    Work power supply:
    The operating voltage of alternating current or direct current shall be in the range of -15% to 10% of the standard voltage and the frequency of AC frequency should be ± 2% of the standard frequency.

    Main technical parameters:

    Model-DN Flow range Q3 Q4 Q2 Q1 Min. reading Max. reading
    Q3/Q1 Q2/Q1 m3/h m3
    LXSY-15 80 1.6 2.5 3.125 0.05 0.03125 0.0001 999999
    LXSY-20 80 1.6 4.0 5.0 0.08 0.05 0.0001 999999
    LXSY-25 80 1.6 6.3 7.875 0.126 0.07875 0.0001 999999
