Large water meter parts

Description of multi jet and woltman turbine water meter mechanism

Meter cover: 15-600mm

Meter coupling: 15, 20, 25, 32, 40, 50mm (For multi jet & single jet & volumetric)
Meter flange: 50mm-600mm

lead free meter fitting: 15mm-50mm

Technics: Forging, Casting. ductile
Material: Brass, Plastic, cast iron, ductile iron

BSPT or NPT thread.

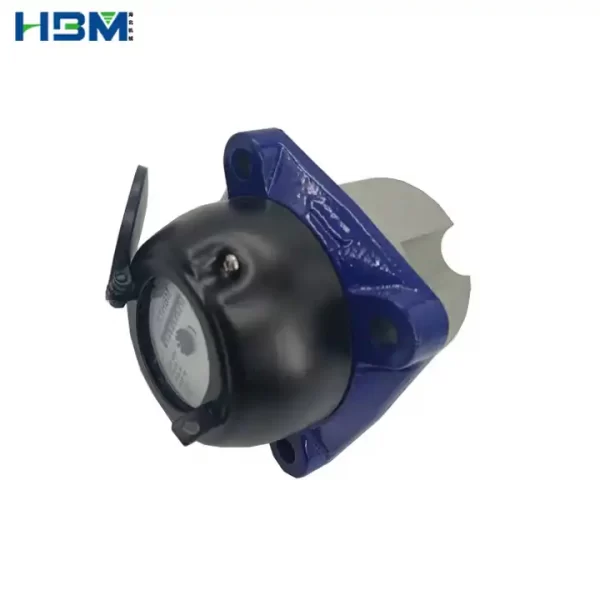

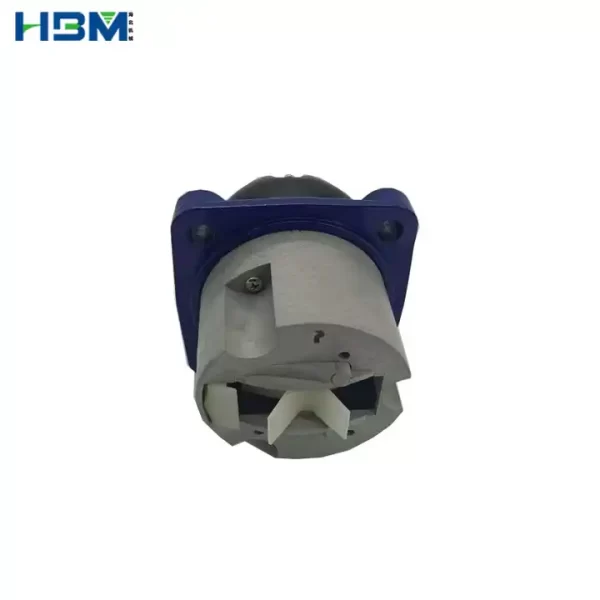

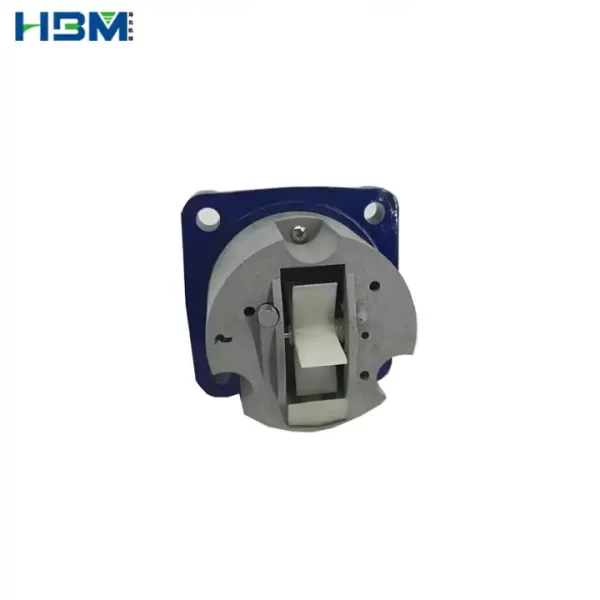

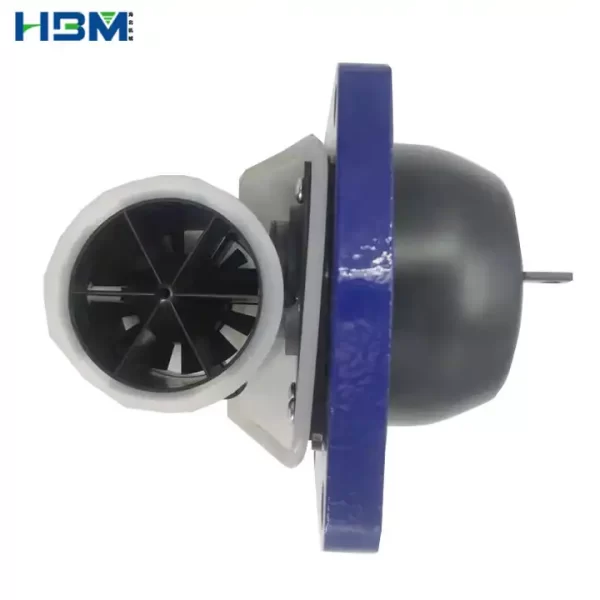

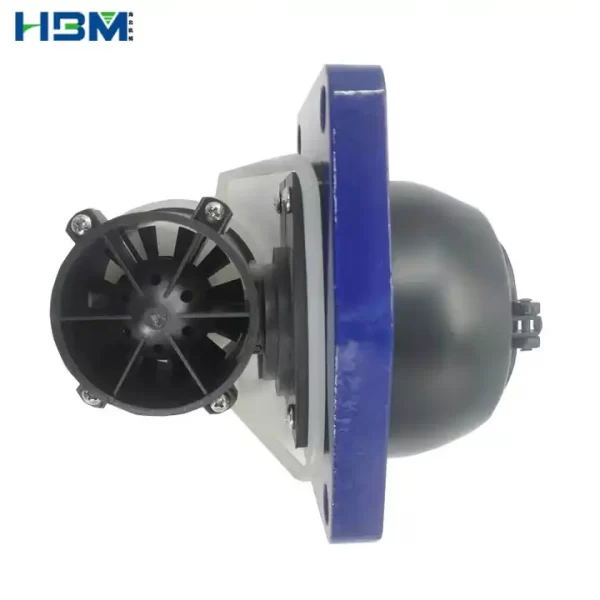

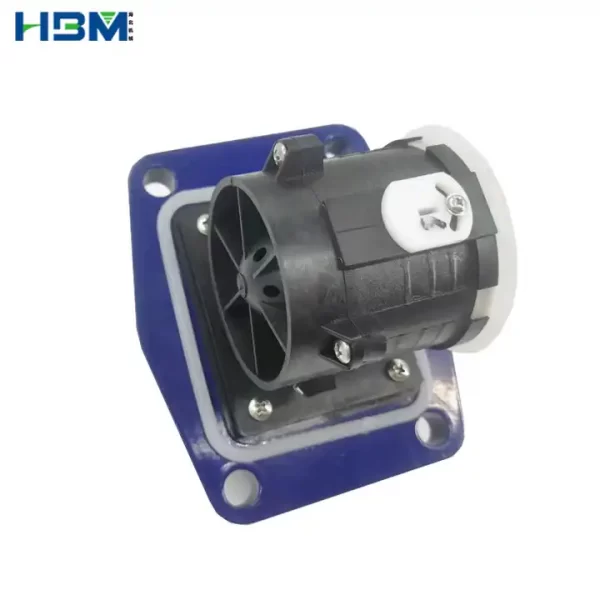

Meter mechanism: 15mm-600mm

Meter box
We produce all parts for multi-jet water meter, single-jet water meter, volumetric water meter, woltman water meter, prepaid water meter etc.

Specifications of water meter parts

Plastic water meter box. good quality and cheap price.

Special locking mechanism , requiring a tailor-made key to open the lid

Unique coupings, conventient replacement for the meters inside the meter/ballcock assembly is lcoked where it passes through the meter box to prevent it from rotating during installation.

High quality ball cock shut off valves without rising headparts which can cause leaks.

Standards Compliance

ISO4064 Class B for horizontal installation

Application of water meter parts

The meter boxes are designed to protect the water meter from unauthorized access and damage the meter boxes are suitable for use in heave traffic situations working conditions

Water temperature: <40C

Irrigation Water Meter

Type	Size   (mm)	Class	qs Overload Flow	qp Permanent Flow	qt    Transitional Flow	qmin   Min. Flow	Min. Reading	Max. Reading
			m3/h				m3
DN50	50	A	30	15	4.5	1.2	0.0002	999,999
DN65	65	A	50	25	7.5	2.0	0.002	999,999
DN80	80	A	80	40	12	3.2	0.002	999,999
DN100	100	A	120	60	18	4.8	0.002	999,999
DN125	125	A	200	100	30	8	0.002	999,999
DN150	150	A	300	150	45	12	0.002	999,999
DN200	200	A	500	250	75	20	0.002	999,999
DN250	250	A	800	400	120	32	0.02	9,999,999
DN300	300	A	1200	600	180	48	0.02	9,999,999

DIMENSIONS

Industrial water meter

Size	Class	R= Q3/Q1	Q4 Overload Flow	Q3 Permanent Flow	Q2 Transitional Flow	Q1 Minimum Flow	Minimum Reading	Maximum Reading
DN			m³/h				m³
50	A	50	31.3	25	0.8	0.5	0.0002	999,999
	B	80	50	40	0.5	0.32
65	A	50	50	40	1.28	0.8	0.0002	999,999
	B	80			0.8	0.5
80	A	50	78.8	63	2	1.26	0.002	999,999
	B	80			1.3	0.79
100	A	50	125	100	3.2	2	0.002	999,999
	B	80			2	1.25
125	A	50	200	160	5.12	3.2	0.002	999,999
	B	80			3.2	2
150	A	50	312.5	250	8	5	0.002	999,999
	B	80			5	3.1
200	A	50	500	400	12.8	8	0.002	999,999
	B	80			8	5
250	A	25	787.5	630	40.32	25.2	0.002	9,999,999
	B	50			20.16	12.6
300	A	25	1250	1000	64	40	0.02	9,999,999
	B	50			32	20

DIMENSIONS

Type	Size	L Length	H Height	Connecting flange
	mm			D1 Outside diameter	D2 Bolt circle diameter	Conneting Bolts (n-M)
LXLC-50	50	200	261	165	125	4-M16
LXLC-65	65	200	271	185	145	4-M16
LXLC-80	80	225	279	200	160	8-M16
LXLC-100	100	250	289	220	180	8-M16
LXLC-125	125	250	299	250	210	8-M16
LXLC-150	150	300	319	285	240	8-M20
LXLC-200	200	350	346	340	295	8-M20(1.0MPa)
						12-M20(1.6MPa)
LXLC-250	250	450	450	395(1.0MPa)	350(1.0MPa)	12-M20(1.0MPa)
				405(1.6MPa)	355(1.6MPa)	12-M24(1.6MPa)
LXLC-300	300	500	478	445(1.0MPa)	400(1.0MPa)	12-M20(1.0MPa)
				460(1.6MPa)	410(1.6MPa)	12-M24(1.6MPa)
