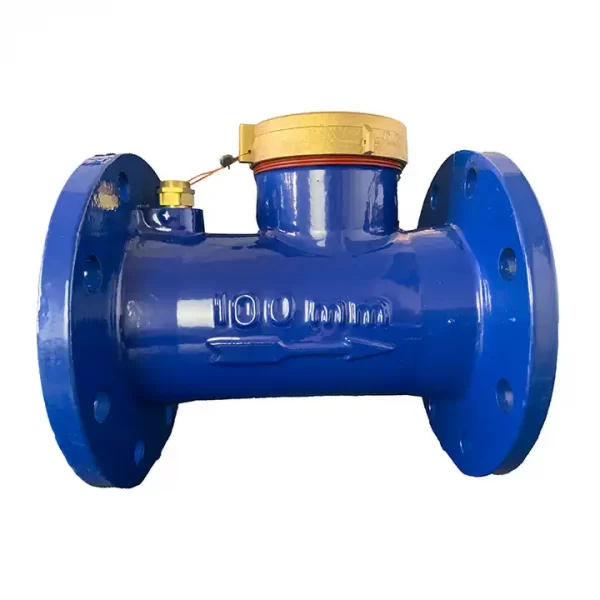

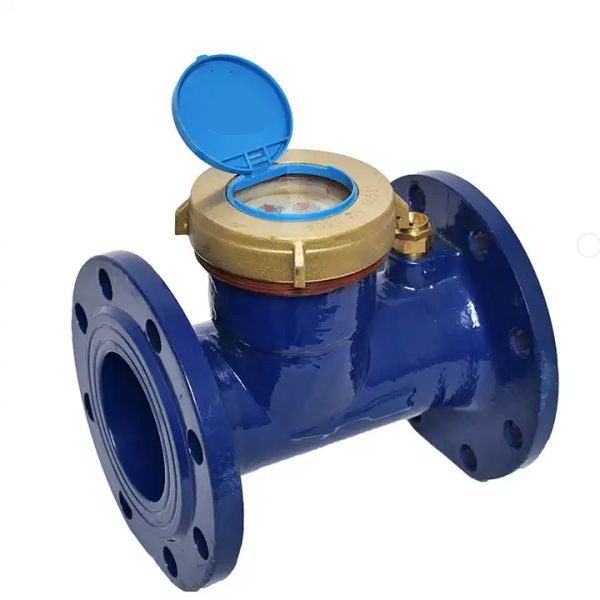

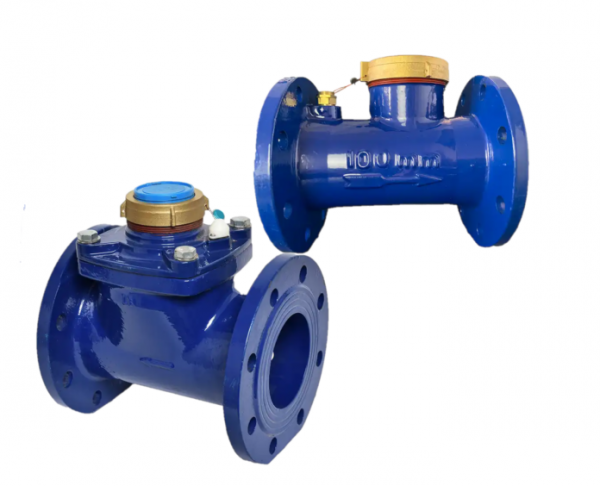

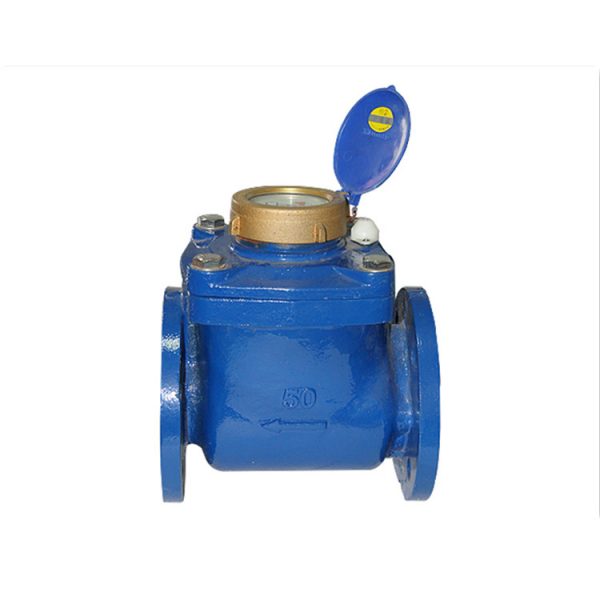

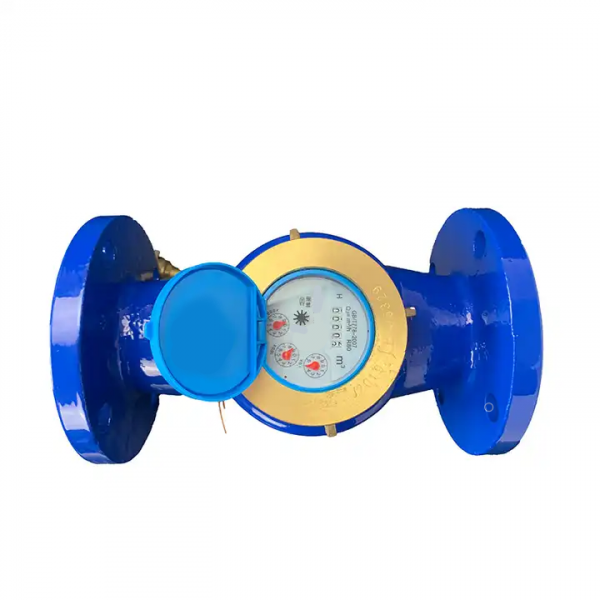

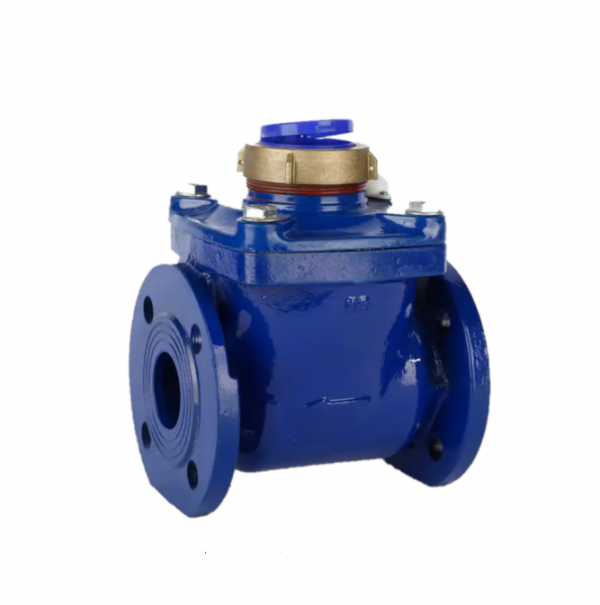

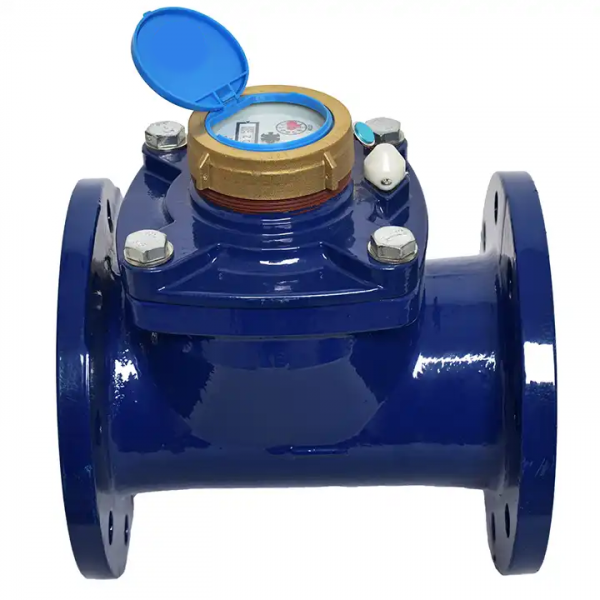

Gray iron case horizontal removable flange industrial water meter (old version)
Measuring the volume of cold (hot) water passing through the pipeline.water meter is used for irrigation,municipality etc
A flange is a connecting profile that is commonly used to connect oil and gas surface equipment. A method for providing assembly and disassembly of components. Most oilfield flanges have a bolt hole pattern that secures the joint and gasket profile to ensure a sealed pressure seal.
This type of water meter can be used for a remote reading transmission system as equipped with a built-in sensor.Measuring the volume of cold (hot) water passing through the pipeline.All meters will be guaranteed against defects in workmanship and materials for a period of one (1) year from the date of acceptance.Defective meters or parts discovered within this period shall be replaced without charge upon return to the HBM Meters.
Application Exploded View
–Measuring the volume of cold (hot) water passing through the pipeline
Feature
–Removable element structure, easy installation and maintenance,
Register for universal use within this range detachable without
Removing the meter from the pipeline;
–Dry-dial, Magnetic drive sensitive action, small pressure loss;
–Vacuum sealed register ensures the dial keep free from fog and
Keep the reading clear in a long term service;
–Selected high quality materials for steady & reliable characteristic;
–Technical data conform to international standard ISO 4064.
Working condition
–Water temperature: 0.1℃～50℃ for cold water meter .0.1℃～90℃ for hot water meter.
–Water pressure: PN10/16/25
–Pressure -loss class:△p25

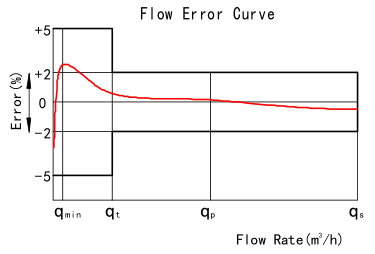

Maximum permissible errors
(1) From minimum flow -rate (Q1) inclusive to transitional flow-rate (Q2) exclusive ±5%
(2) From transitional flrow-rate (Q2) to overload flow-rate(Q4):±2% ( Hot water meter±3% )
| Features | Optional Features |
| 1.Removable element structure, easy installation and maintenance,register for universal use within this range detachable without Removing the meter from the pipeline.
2.Dry-dial, Magnetic drive sensitive action, small pressure loss. 3.Vacuum sealed register ensures the dial keep free from fog and Keep the reading clear in a long term service. 4.Selected high quality materials for steady and reliable characteristics. 5. Technical data conform to international standard ISO 4064. |
1. Plastic register, copper register, and full glass register.
2. Accuracy: R=50. 3. Size: DN50-300mm.
4. Cold/ hot water. 5. Reed switch option.
6. Flange standard can be chosen.
7.360 degrees rotate can be chosen
8. Cast iron, Ductile iron, SS304, and SS316 body can be chosen.
9. Working pressure: PN16/25.
10. Color can be changed on the body and cover.
|
| Standards Compliance | Working Conditions |
| Measuring the volume of cold (hot) water passing through the pipeline. | 1.Water temperature: 0.1°C~50°C (0.1°C~90°C for hot water meter).
2. Water pressure: PN10/1 6/25.
|
|

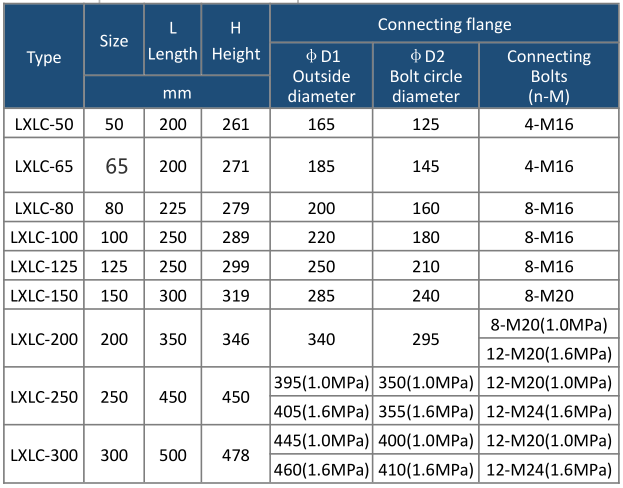

Model
|
Nominal Size
|
L mm
|
H mm
|
W mm |
Connection Thread
|
Weight kg
|
||
|
Flange Outer Φ mm
|
Thread Hold center circle Φ mm
|
Thread connect Numbers
|
||||||
|
LXLC-50
|
50
|
200
|
232
|
380
|
165
|
125
|
4*M16
|
12
|
|
LXLC-65
|
65
|
200
|
232
|
380
|
185
|
145
|
4*M16
|
13
|
|
LXLC-80
|
80
|
225
|
252
|
360
|
200
|
160
|
8*M16
|
16
|
|
LXLC-100
|
100
|
250
|
262
|
380
|
220
|
180
|
8*M16
|
18
|
|
LXLC-125
|
125
|
250
|
275
|
380
|
250
|
210
|
8*M16
|
20
|
|
LXLC-150
|
150
|
300
|
325
|
420
|
285
|
240
|
8*M20
|
38
|
|
LXLC-200
|
200
|
350
|
352
|
420
|
340
|
295
|
8*M20
|
64
|
|
LXLC-250
|
250
|
450
|
470
|
660
|
395
|
350
|
12*M20
|
94
|
|
LXLC-300
|
300
|
500
|
492
|
660
|
445
|
400
|
12*M20
|
114
|
Optional Features Dials
–Plastic register, copper register and full glass register.
–Reed switch option.
–Flange standard can be choose.
–360 degree rotate can be choose.
–Cast iron, Ductile iron body .
–Color can be change on body and cover.
Dimensions Installation
NOTE:The flange dimension conforms to ISO7005-2:1988 standard.
Order for products of special requirements is also accepted.
Pulse Position Pressure Loss Curve

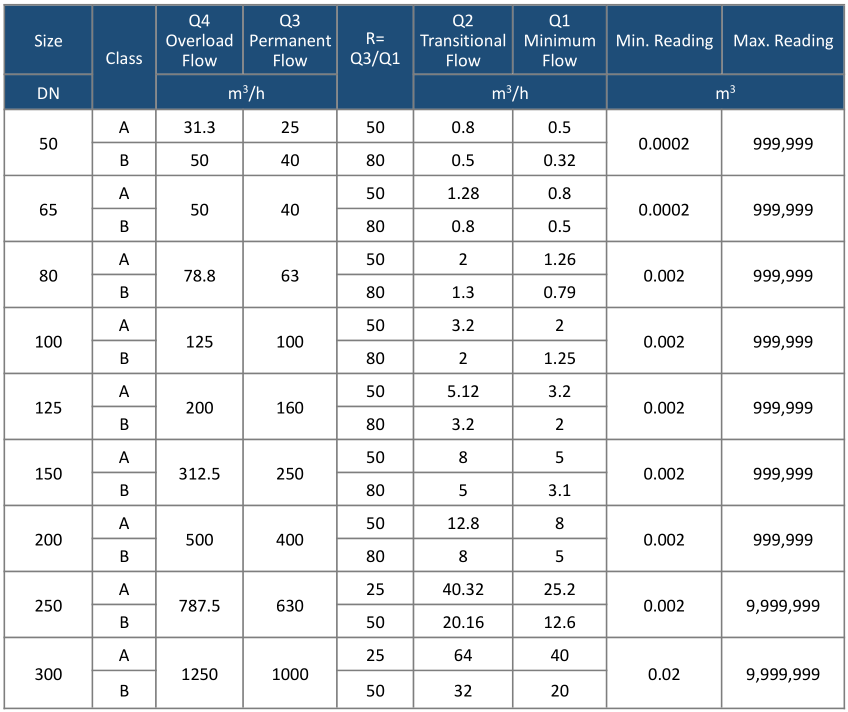

Flow Technique Specification
