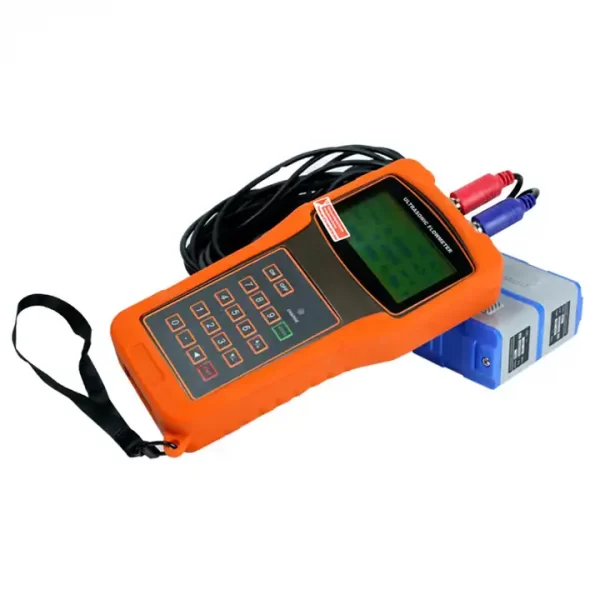

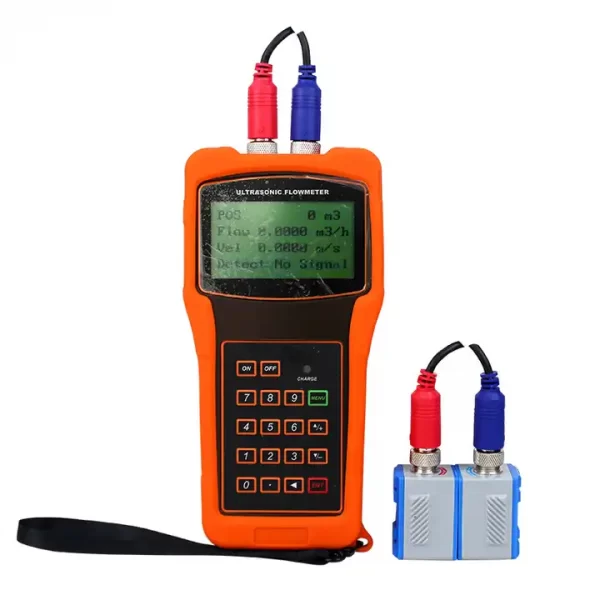

DN25-6000mm Handheld Ultrasonic Flowmeter
This flowmeter can be virtually applied to a wide range of measurement. A variety of liquid applications can be accommodated: ultra-pure liquids, potable water, chemicals, raw sewage,reclaimed water, cooling water, river water, plant effluent. etc
All meters will be guaranteed against defects in workmanship and materials for a period of one (1) year from the date of acceptance. Defective meters or parts discovered within this period shall be replaced without charge upon return to the HBM Meters.

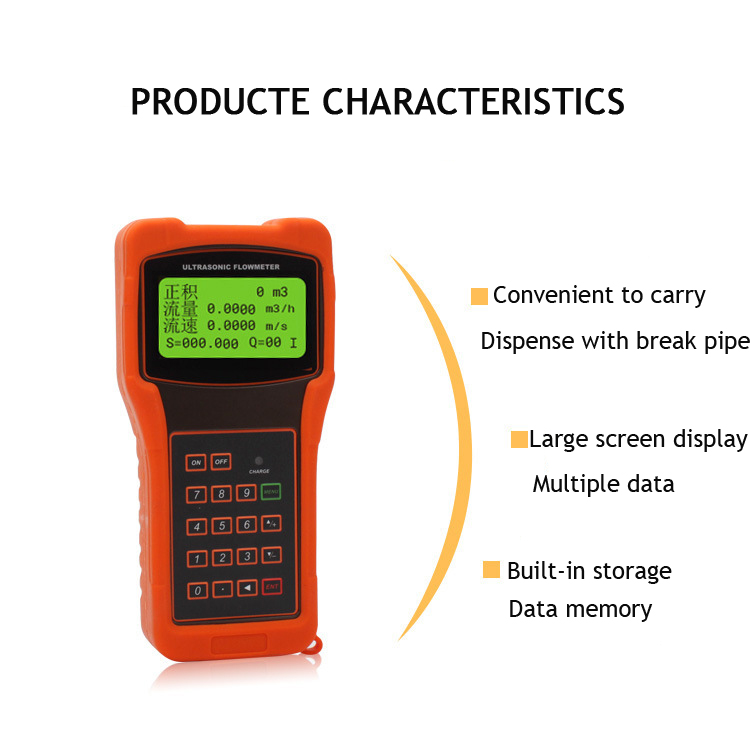

Features
High Accuracy measuring
Accurac y : ±1 % , linearit y : 0.5 % , repeatabil it y : 0.2 %
Wide measuring range
Several types transducer for selection, measuring pipe size from DN 15 mm to DN 6000 mm
Large capacity battery
Built-in rechargeable Ni-MH battery, provide over 12 hours of continuous operation
Non- intrusive measur ing
Non- intrusive, clamp-on transducer, no pressure drop, no pipe disturbance
Support Multiple Language Menu
Chinese, English, Italian and other languages can be customized

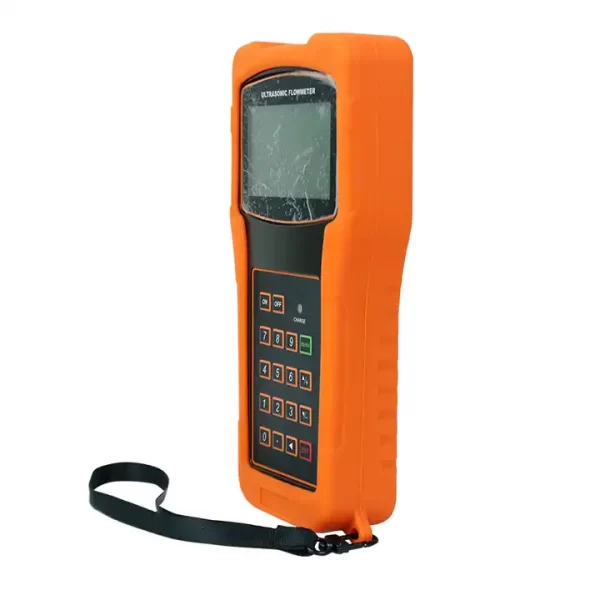

Large LCD di splay

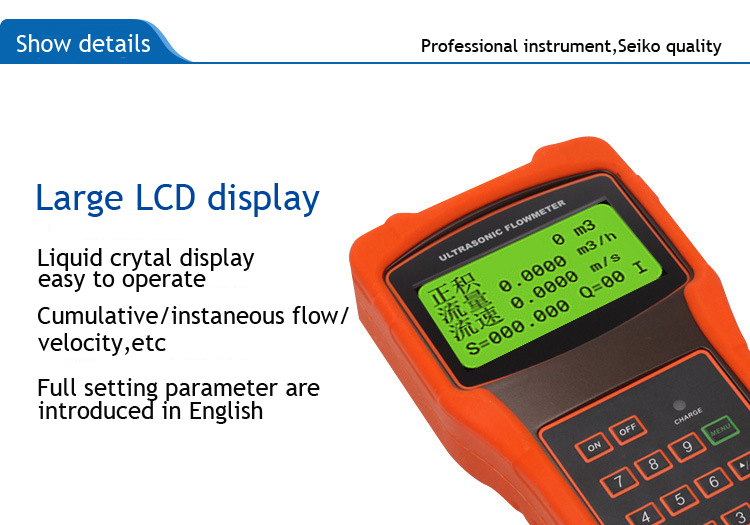

Display instantaneous flow, accumulated flow (positive, negative and net ) , velocit y, working status etc .
Built-in data logger
Built- in 24K data logger, store over 2000 lines measuring data
Datasheet
|
Items Performance & Parameter
|
||||
|
Converto
|
Principle
|
Transit-time ultrasonic flowmeter
|
||
|
Accuracy
|
±1%
|
|||
|
Display
|
4×16 character LCD with backlight, support the language of Chinese, English and Italy
|
|||
|
Data Interface
|

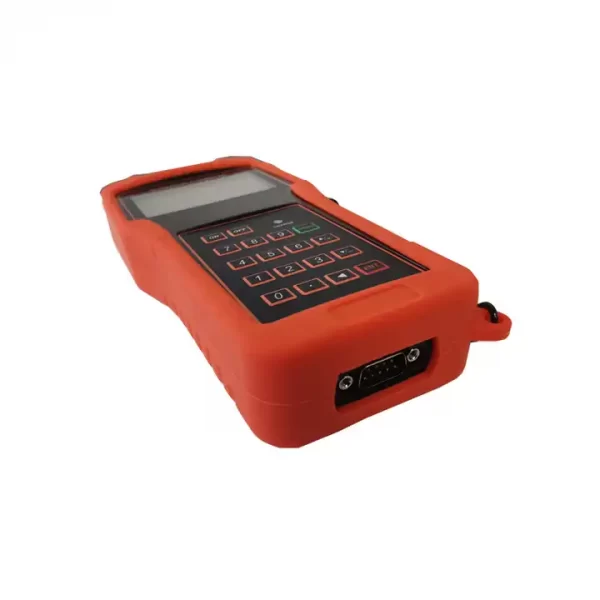

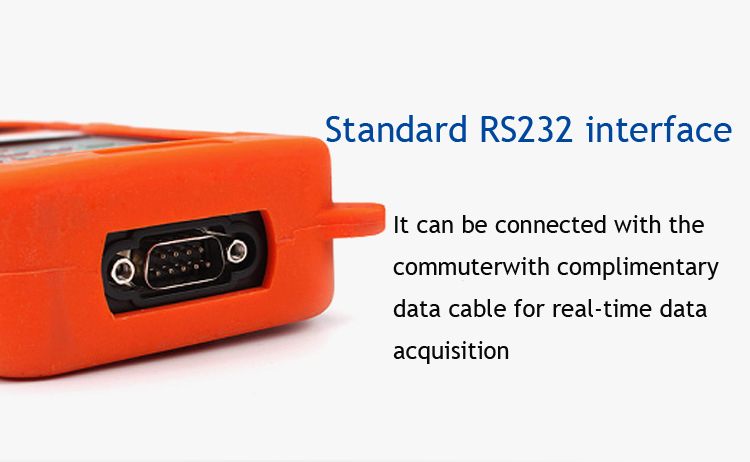

Insulate Rs232 serial interface, upgrade the flowmeter software by computer
|
|||
|
Pipe Installation Condition
|
Pipe Material
|
Steel, Stainless steel, Cast iron, Copper, Cement pipe, PVC, Aluminum, Glass steel product, liner is allowed
|
||
|
Pipe Diameter
|
25-6000mm
|
|||
|
Straight Pipe
|
Transducer installation should be satisfied: upstream10D, downstream 5D, 30D from the pump
|
|||
|
Measuring Medium
|
Type of Liquid
|
Single liquid can transmit sound wave, such as Water (hot water, chilled water, city water, sea water, waste water, etc.); Sewage
with small particle content; Oil (crude oil, lubricating oil, diesel oil, fuel oil, etc.); Chemicals (alcohol, etc.); Plant effluent; Beverage; Ultra-pure liquids, etc |
||
|
Temperature
|
-30~160℃
|
|||
|
Turbidity
|
No more than 10000ppm and less bubble
|
|||
|
Flowrate
|
0~±10m/s
|
|||
|
Working Environment
|
Temperature
|
Convertor：-20~60℃；Flow Transducer：-30~160℃
|
||
|
Humidity
|
Convertor: 85%RH；Flow Transducer: Ip67
|
|||
|
Power Supply
|
3 AAA built-in Ni-MH batteries 1.2V(for over 12 hours of operation). 90V-260V AC adapter
|
|||
|
Power Consumption
|
1.5W
|
|||
|
Case Material
|
ABS
|
|||
|
Dimension
|
200*93*32MM(Convertor)
|
|||

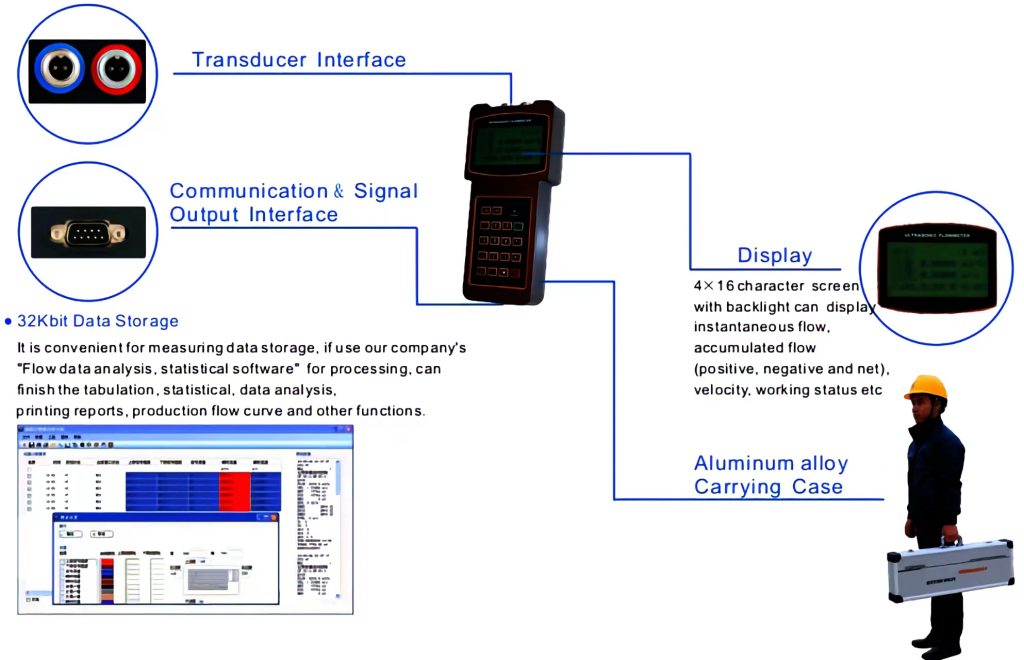

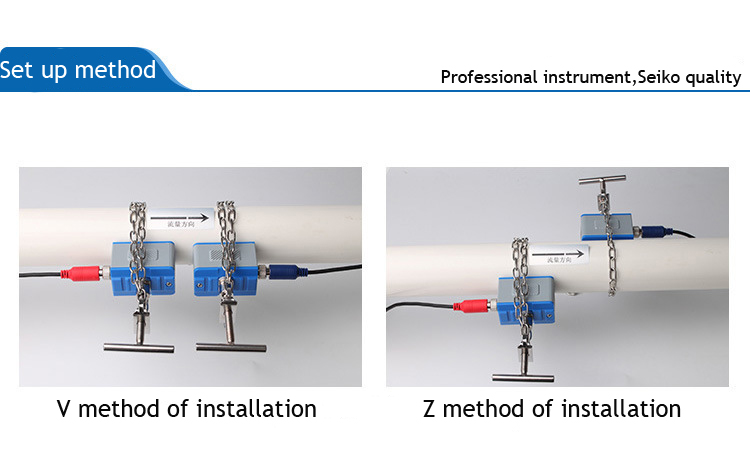

Measuring Diagram

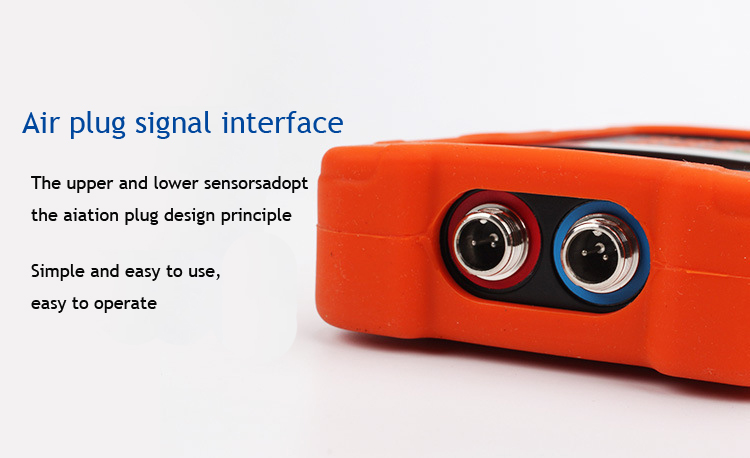

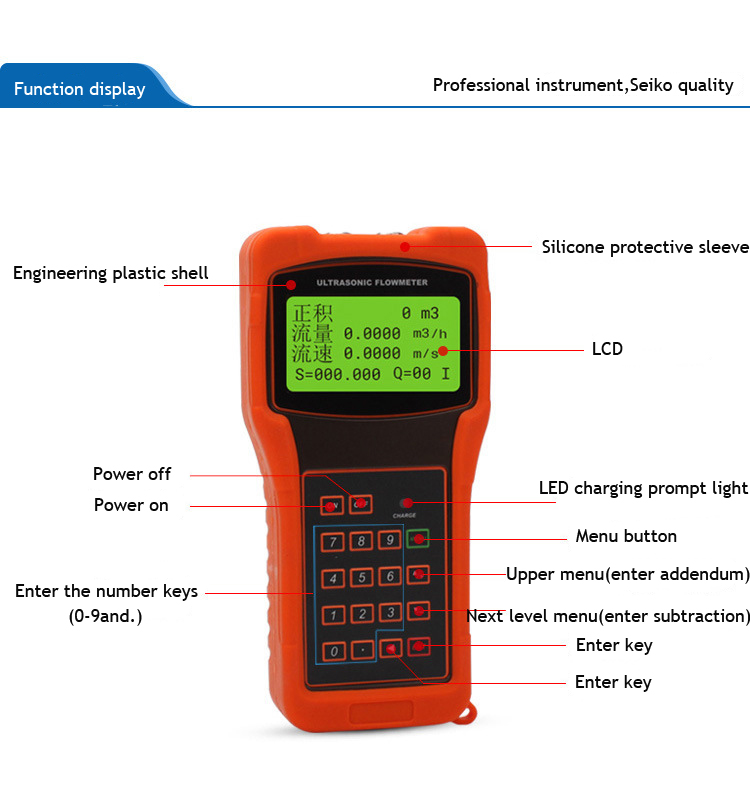

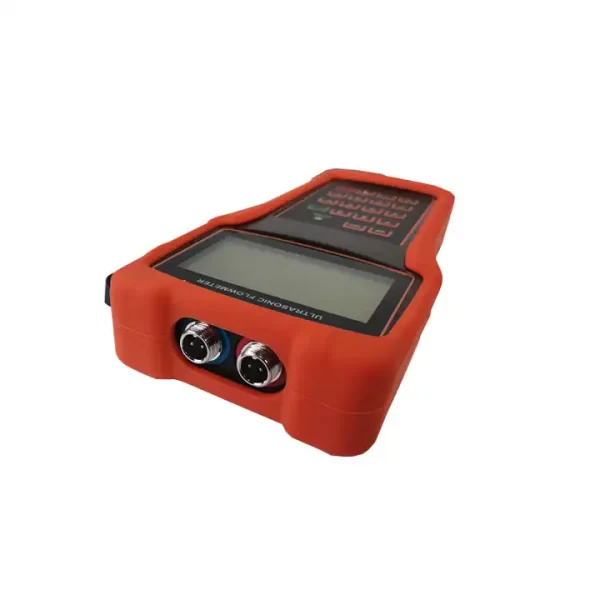

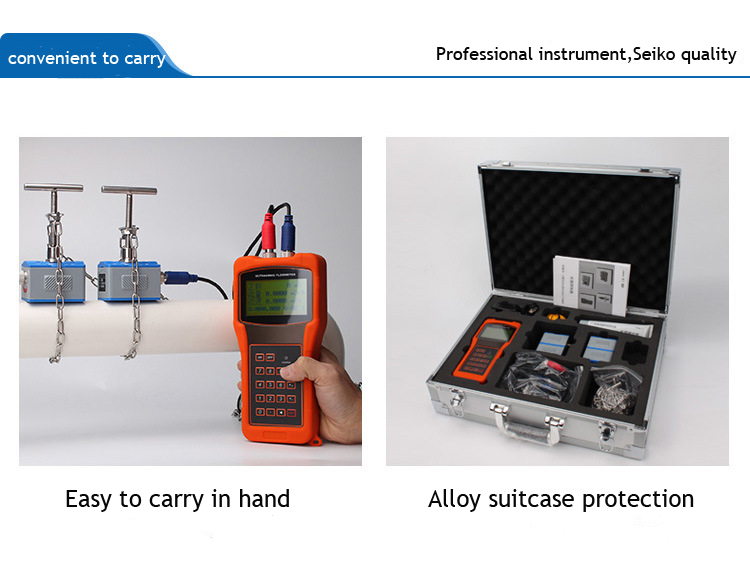

Parts Descriptions

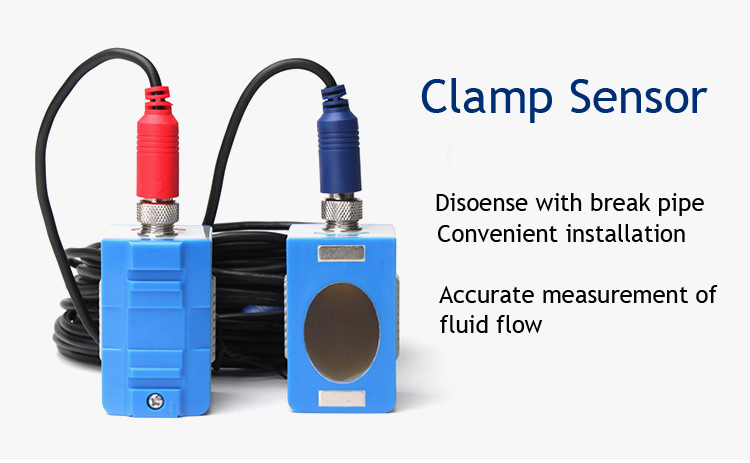

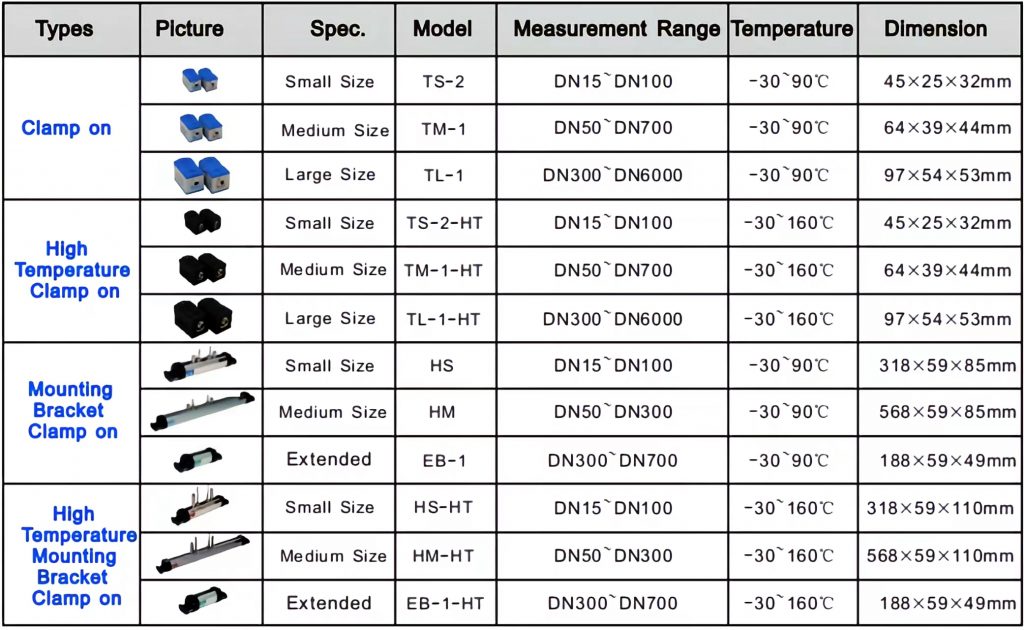

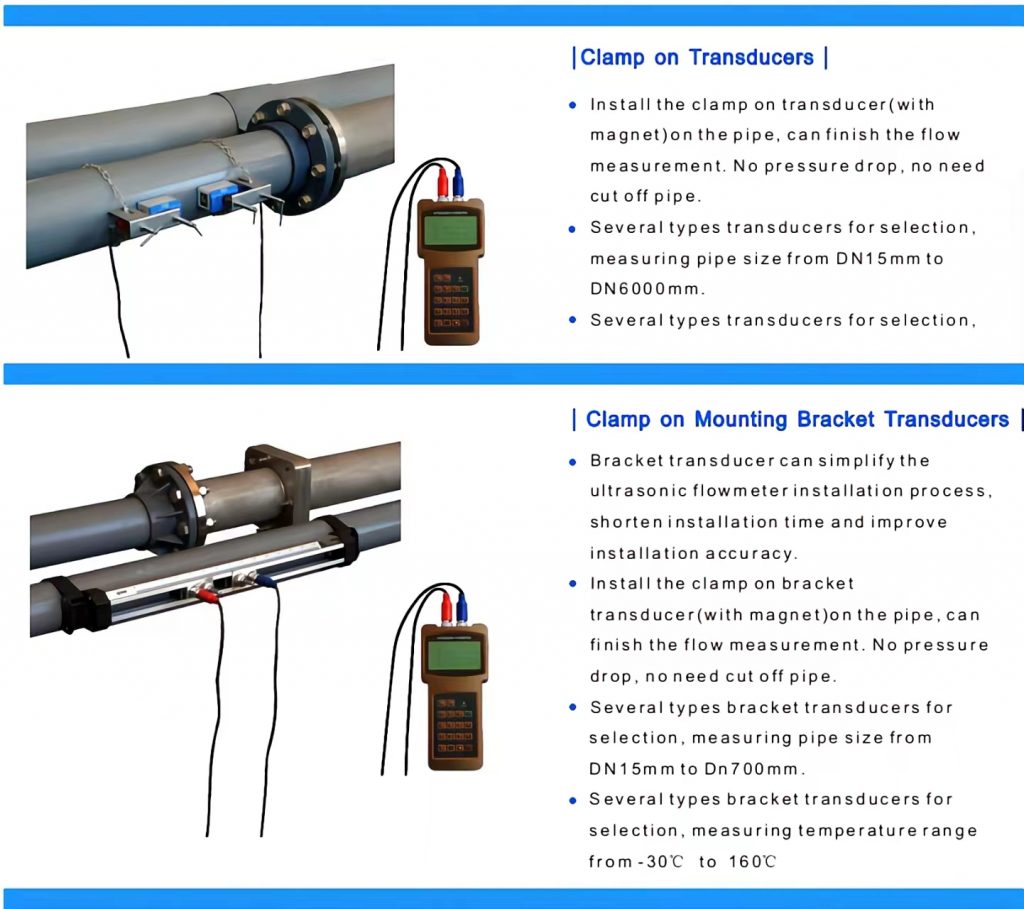

Optional Transducer
