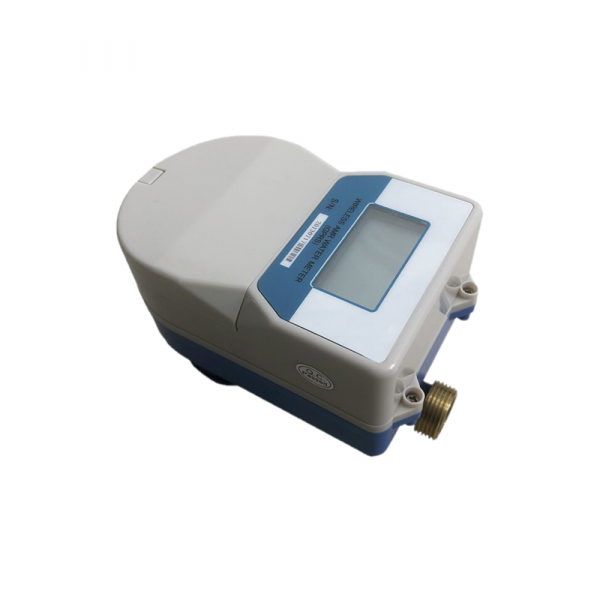

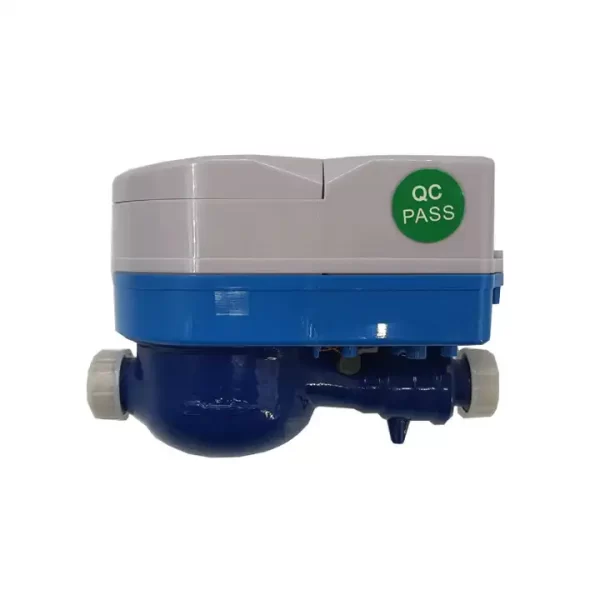

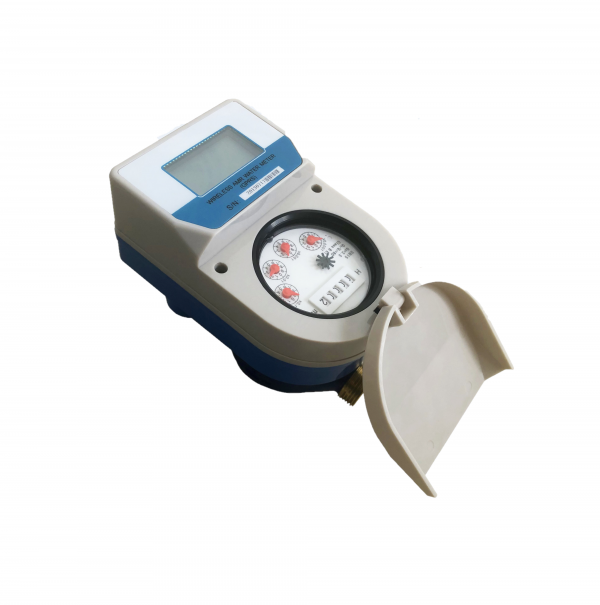

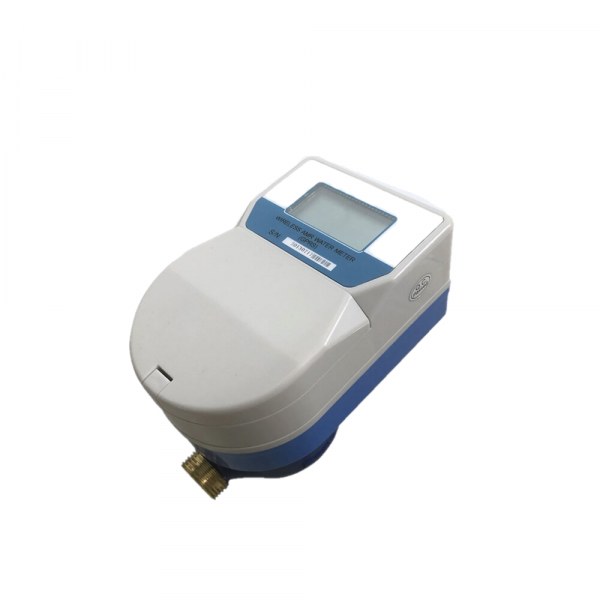

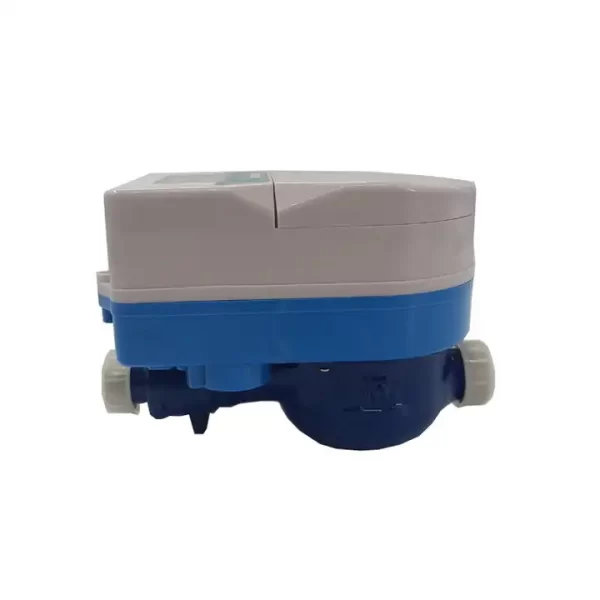

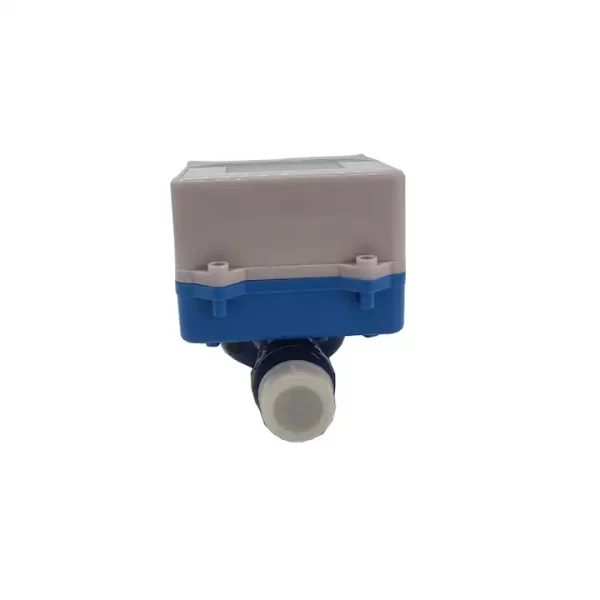

DN15-300mm GPRS wireless water meter

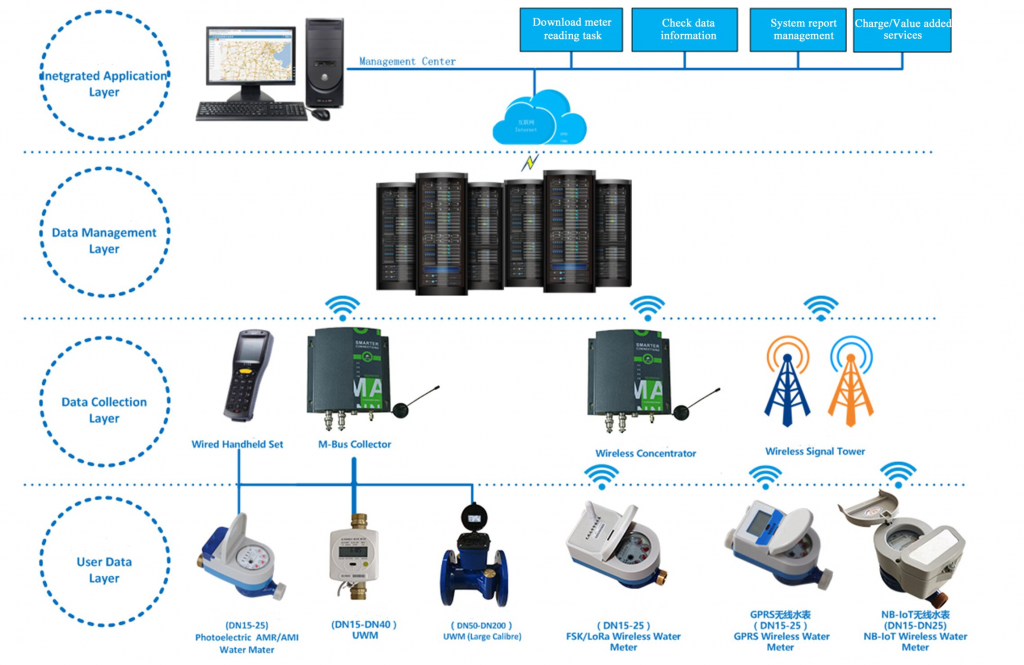

The wireless AMR water meter(GPRS) belong to high-tech products in the smart water meter, using of advanced wireless transmission technology, it transforms metered information of conventional mechanical water meter into electrical signal have it stored by micro-electronics control circuit. It is able to automatically read the metering data via wireless remote network and is also able to transfer the data to the back-office system (data center) after reading the meters.
All meters will be guaranteed against defects in workmanship and materials for a period of one (1) year from the date of acceptance.Defective meters or parts discovered within this period shall be replaced without charge upon return to the HBM Meters.
I. Overview
The wireless AMR water meter(GPRS) belong to high-tech products in the smart water meter, using of advanced wireless transmission technology, it transforms metered information of conventional mechanical water meter into electrical signal have it stored by micro-electronics control circuit. It is able to automatically read the metering data via wireless remote network and is also able to transfer the data to the back-office system (data center) after reading the meters.
Ⅱ. Features
1, Easy to build: no wiring required, easy to install and debug;
2, Low construction cost: no wiring costs, use wireless network,signal stability, fast reading data;
3, Long service life: low power design, real-time standby, battery life ≥ 3 years (upload data once a day)
4, Built-in valve, can remotely transmit data, remote control valve.

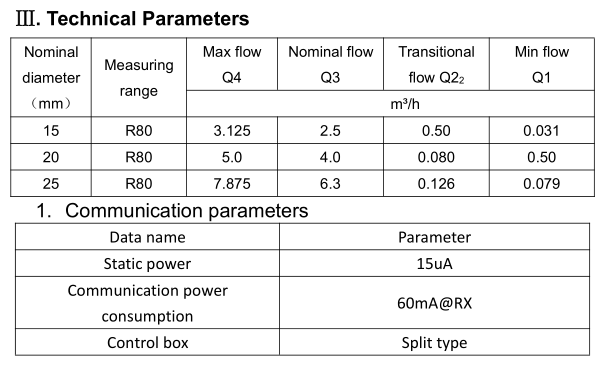

2. Relative error
The maximum allowable error is ±5% from the low flow area including the minimum flow rate to the demarcation flow rate (exclusive)
From high flow areas including demarcation flow to overload flow (inclusive) when the water temperature is ≤ 30°The maximum allowable error is ±2%; when the water temperature>30°, the maximum allowable error±3%
3.Operating temperature: Cold water meter: (0.1 ~ 30) °C Hot water meter: (0.1 ~ 90) °C Working pressure：≤1.0MPa
4.Pressure loss：≤0.063MPa
5. Installation Environment: Class B – Fixed Water Meter installed in indoor
6. Electromagnetic Environment: E1 – Residential, Commercial and Light Industry
7. Working current: quiescent current <19uA
8. Flow profile sensitivity level: U10, D5

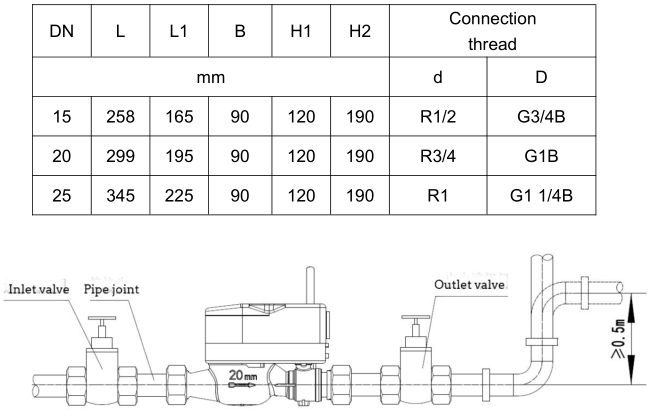

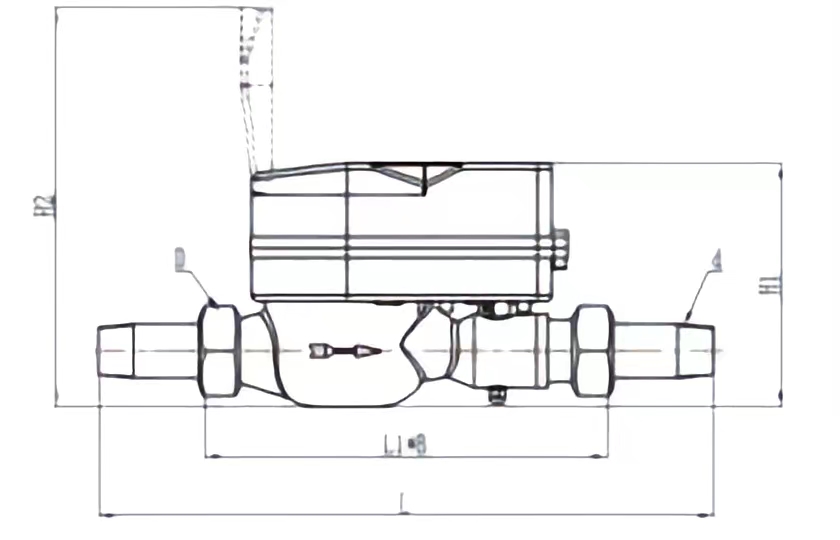

9. Outline drawing
10.Dimensional diagram

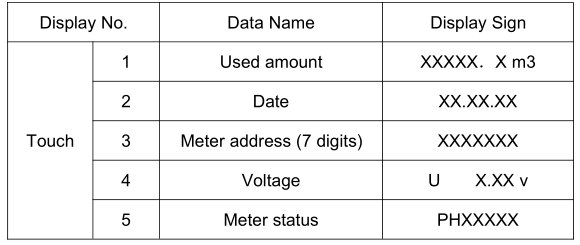

11.Display content
Ⅳ. Operation (use) instructions
The GPRS wireless water meter uses an authorized wireless frequency band and uses a communication carrier network. Button on the voltage interface long touch sign “ ”5 S，show “- – -” ，This means that the meter is in the online state, and the reported data and control valve can be queried on the platform.
