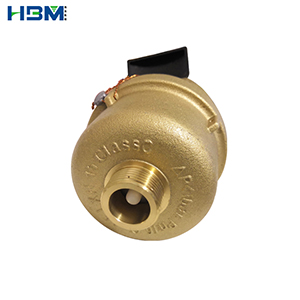

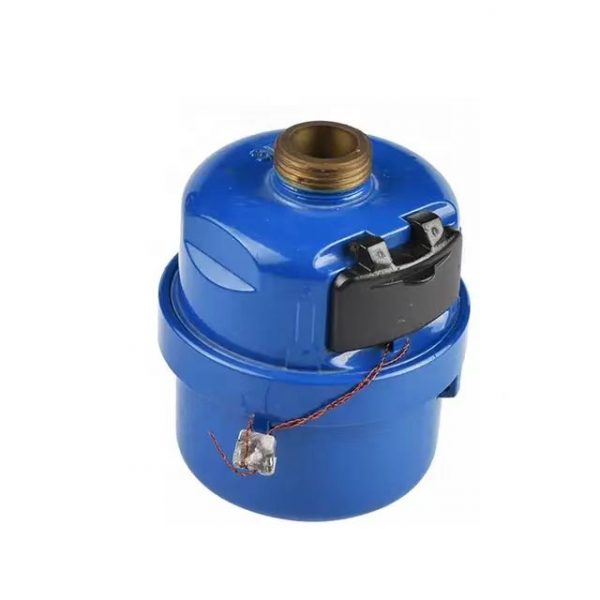

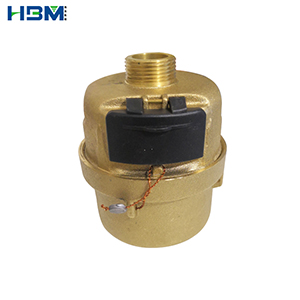

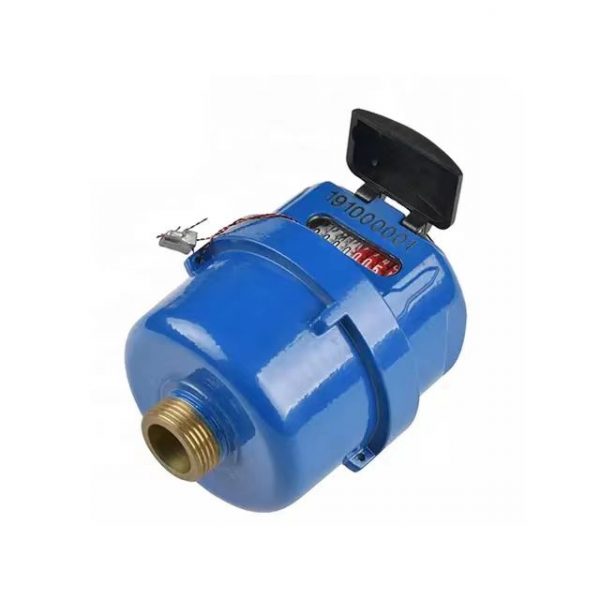

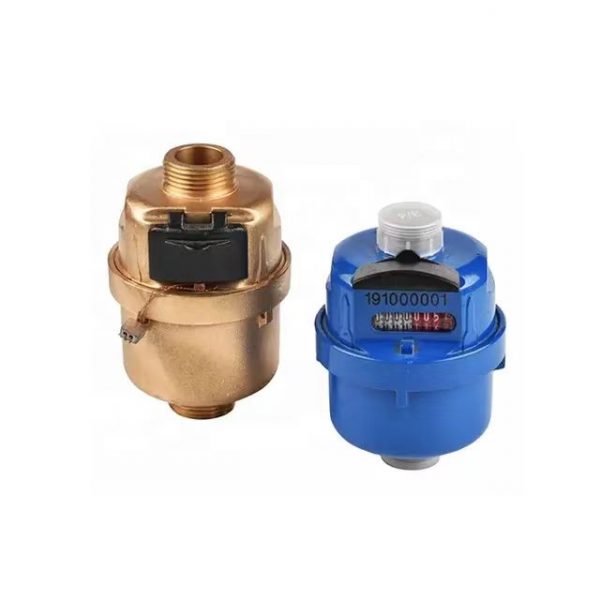

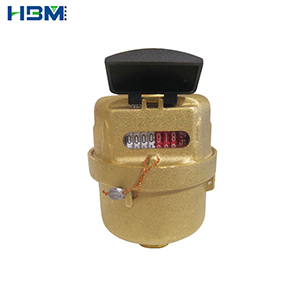

Rotary Piston Liquid Sealed Water Meter
Class C Cold (Hot) Water Metersr DN15-40(mm)
Volumetric Cold Water Meter – Considered to be the world’s most successful household water meter, it offers unparalleled precision and high performance measurements with durable and tamper-proof construction as well as safety.This type of water meter can be used for a remote reading transmission system as equipped with a built-in sensor.
Application
–Measuring the volume of cold (hot) water passing through the pipeline.
Also suitable for pure water.
Feature
–Low start-up flow rate.
–Volumetric rotary piston principle of measurement.
–LXHY-15～20 is no location limitation for installation.
–Accuracy is not to be affected wherever installed at a horizontal, vertical or inclined pipeline.
–Register is sealed with a special liquid to keep a clear reading in long term service.
–Mechanism use of high-quality material to ensure a stable characteristic.
–Accurate measurement with conformity to ISO 4064 class C.
–On request, the series can be equipped with a kind of remote transmission device.
Working condition
–Water temperature: 0.1℃～50℃ for cold water meter .
–Water pressure: PN16
–Pressure -loss class:△p63
Maximum permissible errors
(1) From minimum flow -rate (Q1) inclusive to transitional
flow-rate (Q2) exclusive ±5%
(2) From transitional flrow-rate (Q2) to overload flow-rate
(Q4):±2% ( Hot water meter±3% )
Optional Features
–Accuracy: R=160.
–Material: Brass body
–Size: Brass body: DN15-40.
—Color can be change on body and cover.
–Register: Liquid Sealed.Different register can choose.

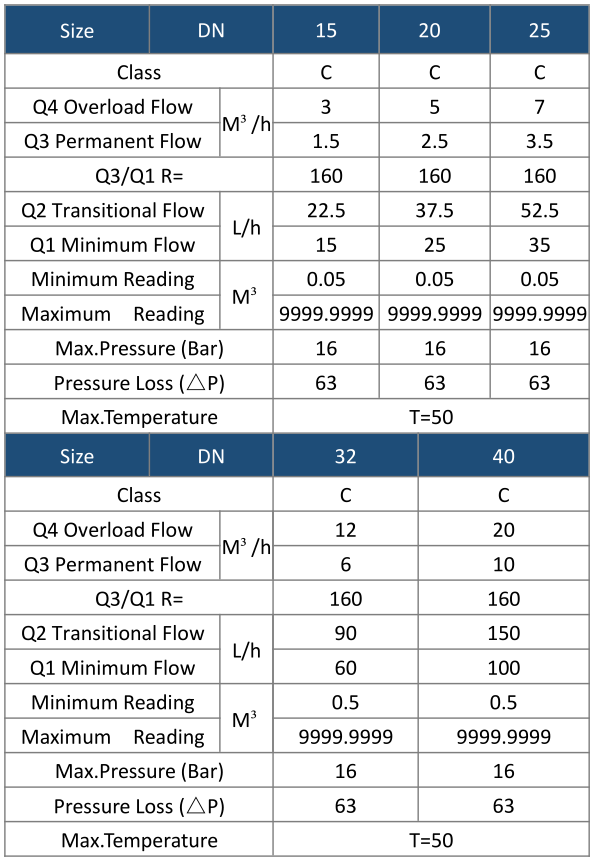

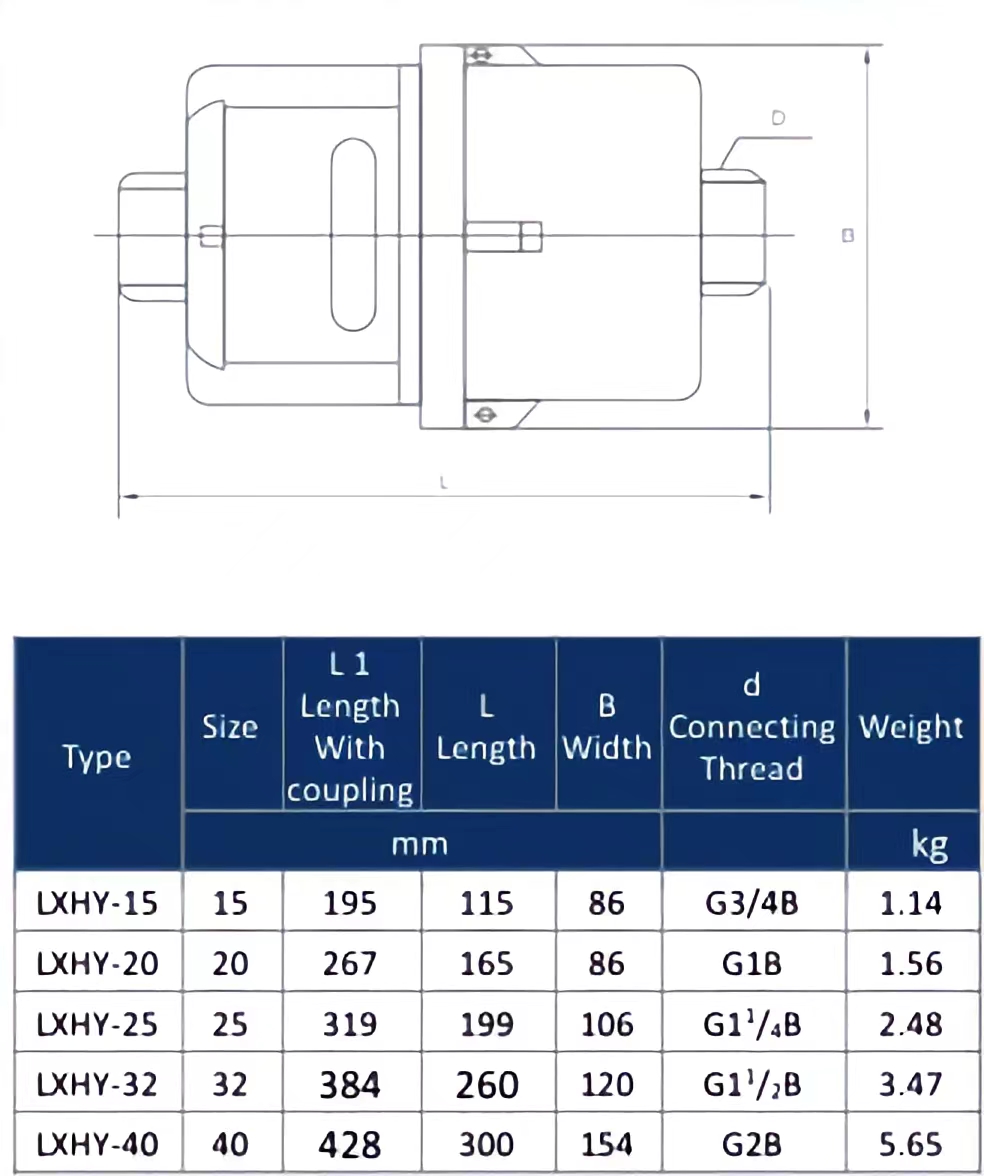

Dimensions
NOTE: The DN15/20 connect can bring Non return valve & plastic filter . Thread end type: BSP / NPT.

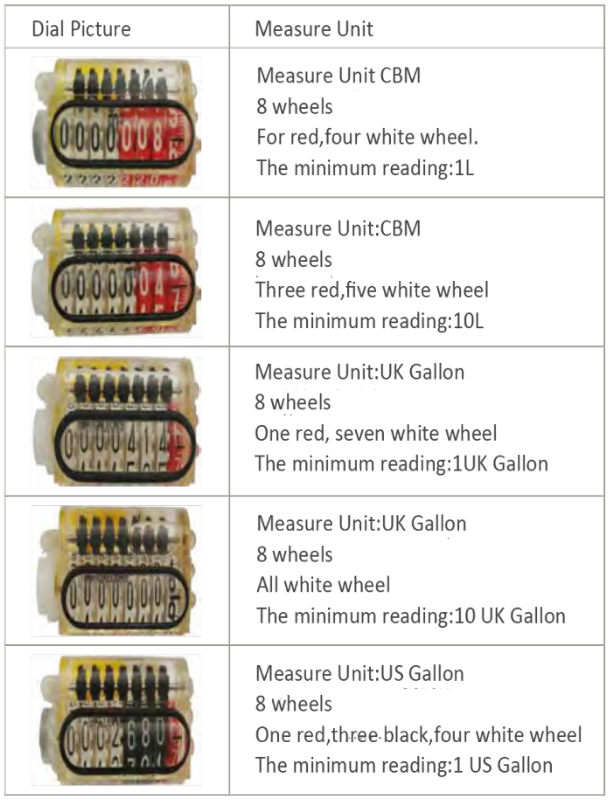

Register Type

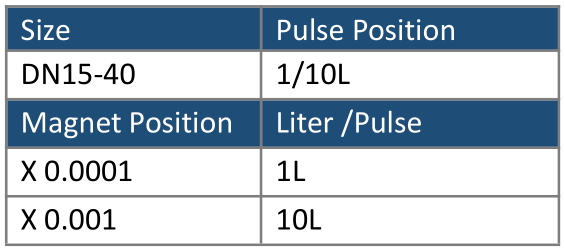

Pulse Position

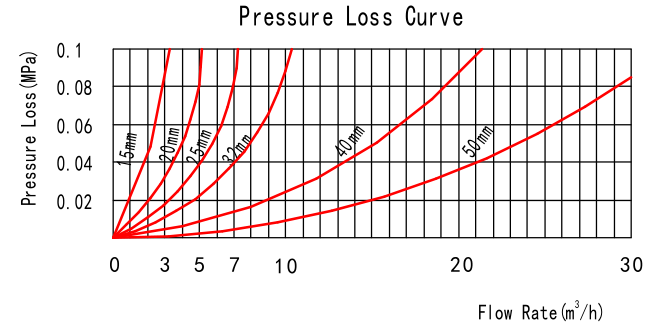

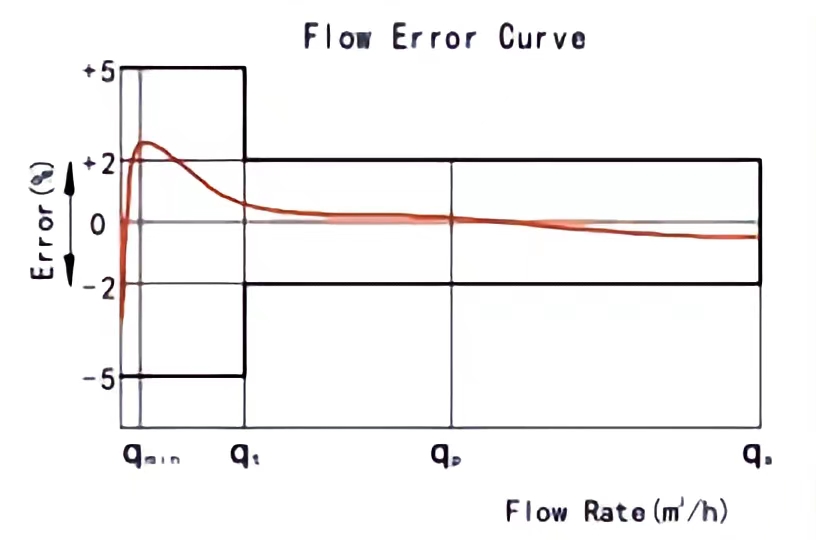

Pressure Loss Curve

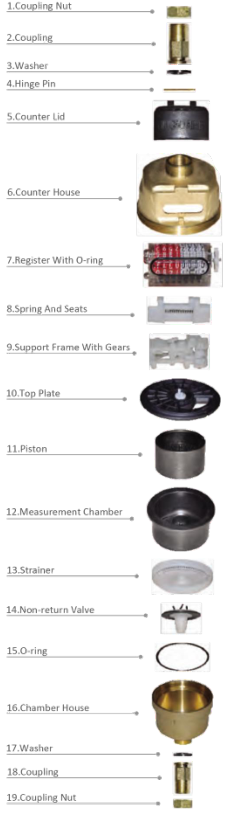

Flow Technique Specification Exploded View
